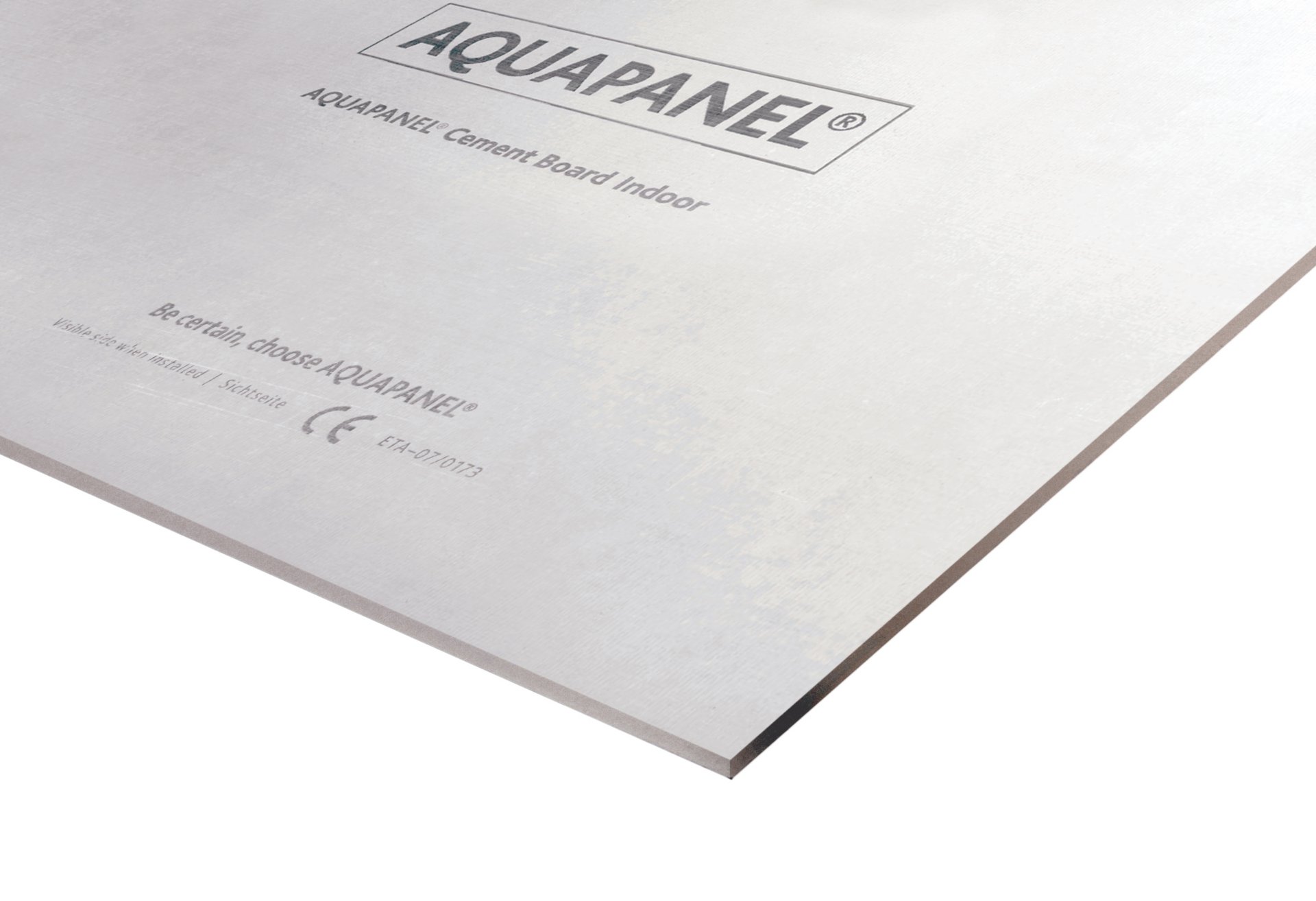

Illustrative image. It may show a different size or finish from the same product range, and is provided for identification only.

Knauf

This product is available from the catalog. Contact a seller to request a quote.

0 Reviews

Aquapanel® Indoor

Product	Nominal	Frame type	Fire test report	Total thickness mm	Insulation thickness mm	Max height double stud 040 m
Aquapanel® Indoor	98/48-35	M 48/35	PV Efectis EFR-22-002846 et Ext 22/2 et Ext. EFR-14-002986	98	45	3.95
Aquapanel® Indoor	98/48-50	M 48/50	PV Efectis EFR-22-002846 et Ext 22/2 et Ext. EFR-14-002986	98	45	4.3
Aquapanel® Indoor	120/70-35	M 70/35	PV Efectis EFR-22-002846 et Ext 22/2 et Ext. EFR-14-002986	120	70	4.95
Aquapanel® Indoor	120/70-40	M 70/40	PV Efectis EFR-22-002846 et Ext 22/2	120	70	5
Aquapanel® Indoor	140/90-35	M 90/35	PV Efectis EFR-22-002846 et Ext 22/2 et Ext. EFR-14-002986	140	85	5.75
Aquapanel® Indoor	140/90-40	M 90/40	PV Efectis EFR-22-002846 et Ext 22/2	140	85	5.8
Aquapanel® Indoor	150/100-35	M 100/35	PV Efectis EFR-22-002846 et Ext 22/2 et Ext. EFR-14-002986	150	85	6.1
Aquapanel® Indoor	150/100-40	M 100/40	PV Efectis EFR-22-002846 et Ext 22/2	150	85	6.2

Width mm	1200
Wall type	120/70-35
Ossature type	M 70/35
Plate width m	1.2
Fire resistance	EI 60
Torro wall code	120/70-35
Sound insulation source	Estimation
Torro wall ossature type	M 70/35
Mineral wool thickness mm	70
Plate count and thickness	4 x 13
Max height double stud 060 m	4.5
Max height single stud 060 m	4.45
Max height double stud 040 mm	4950
Max height double stud 060 mm	4500
Max height single stud 060 mm	4450
Torro wall total thickness mm	120
Double stud required 35mm flange	true
Sound insulation ra with insulation	50
Torro wall plate count and thickness	4 x 13
Sound insulation ra without insulation	42
Torro wall max height double stud 060 m	5.55
Torro wall max height single stud 060 m	4.45
