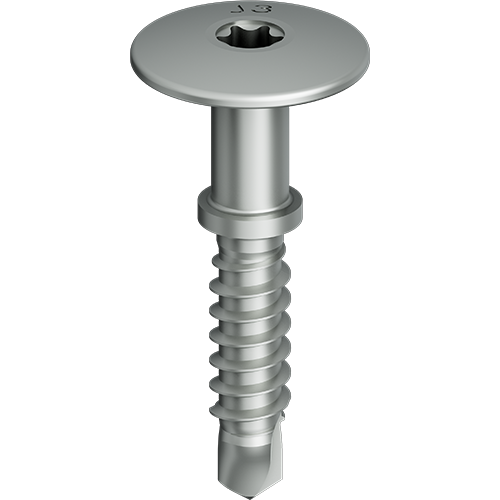

Illustrative image. It may show a different size or finish from the same product range, and is provided for identification only.

EJOT

This product is available from the catalog. Contact a seller to request a quote.

0 Reviews

Self-drilling screw JT4-LT-TD-3-5.5

Ean	4061245114712
Drive	TX25
Feature	Stop collar, strip-proof, firm stop, perpendicular orientation, optimal sliding points, no damage to female thread in substructure, aesthetic facade design
Nominal	5.5x28
Material	A2 stainless steel
Length mm	28
Screw code	JT4-LT-TD-3-5.5
Screw type	Self-drilling screw
Application	Fastening facade cladding to aluminium substructures
Head version	Pan head with hexalobular TX – thermal decoupled
Manufacturer	EJOT
Thread pitch	2.0
Compatible with	LT-TD fixed and sliding point grommets
Material detail	A2 stainless steel with hardened steel point
Head diameter mm	16
Order description	JT4-LT-TD-3-5.5x28/8
Thread diameter mm	5.5
Drilling capacity mm	3
Non threaded part mm	8
Max panel thickness mm	8

No reviews yet.

Technical specifications
