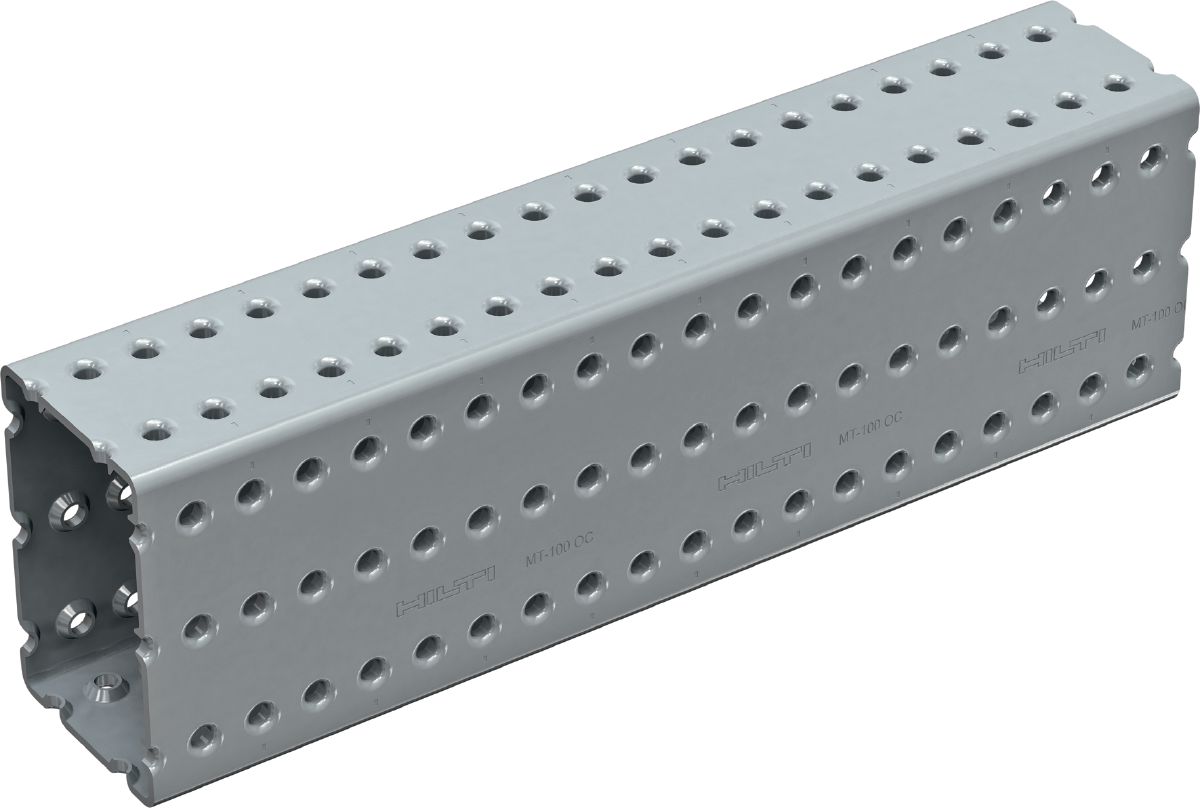

Illustrative image. It may show a different size or finish from the same product range, and is provided for identification only.

Hilti

This product is available from the catalog. Contact a seller to request a quote.

0 Reviews

Rail rectangulaire lourd MT-100 S OC

Nominal	3 m
Length m	3
Material	steel
Width mm	100
Height mm	50
Rail type	MT-100
Thickness mm	4
Material grade	S350GD
Surface finish	Zinc-magnésium
Weight kg per m	15.096
Hole diameter mm	9.2
Cross section mm2	1555.34
Modulus e n per mm2	210000
Section modulus wz cm3	52.2
Section modulus wy1 cm3	64.98
Section modulus wy2 cm3	64.98
Environmental conditions	En extérieur, pollution faible à modérée
Max bending moment my nm	15162
Moment of inertia iy cm4	487.36
Moment of inertia iz cm4	260.98
Radius of gyration iy cm	5.6
Radius of gyration iz cm	4.1
Center of gravity a e1 mm	75
Center of gravity b e2 mm	75
Allowable stress n per mm2	233.3
Lateral torsional buckling susceptible	false
