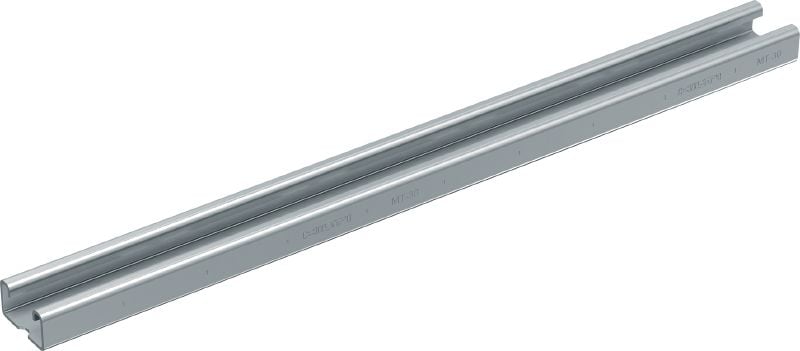

Illustrative image. It may show a different size or finish from the same product range, and is provided for identification only.

Hilti

This product is available from the catalog. Contact a seller to request a quote.

0 Reviews

Rail de supportage MT-60 S OC (zinc-magnésium)

Nominal	3 m
Length m	3
Material	steel
Rail type	MT-60
Designation	MT-60 S OC
Thickness mm	2.75
Material grade	S280GD
Surface finish	Zinc-magnésium - pour utilisation en extérieur
Weight kg per m	4.017
Cross section mm2	500.1
Modulus e n per mm2	210000
Material composition	Acier S280 ou supérieur
Section modulus wz cm3	8.05
Section modulus wy1 cm3	7.83
Section modulus wy2 cm3	8.1
Environmental conditions	En extérieur, pollution faible à modérée
Max bending moment my nm	1584
Moment of inertia iy cm4	28.67
Moment of inertia iz cm4	17.11
Radius of gyration iy cm	2.39
Radius of gyration iz cm	1.85
Center of gravity a e1 mm	36.62
Center of gravity b e2 mm	35.38
Allowable stress n per mm2	202.3
Lateral torsional buckling susceptible	true
