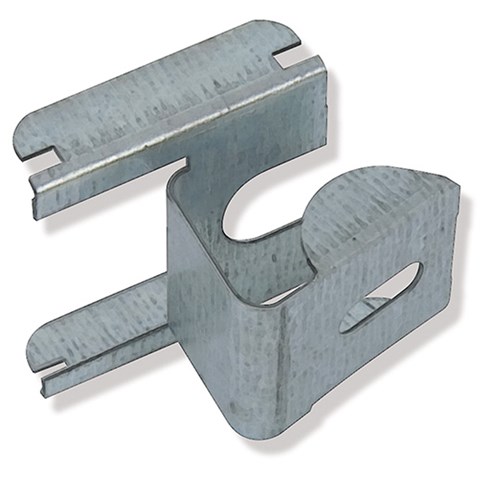

Illustrative image. It may show a different size or finish from the same product range, and is provided for identification only.

Knauf

This product is available from the catalog. Contact a seller to request a quote.

0 Reviews

METAL F-Clip – Unperforated

Nrc	0.15
Rw db	19
Cac db	35
Alpha w	0.10(L)
Dnfw db	34
Nominal	200 mm
Options	dimensions, post-coated aluminium, perforations, RAL & NCS colours, BioGuard finish, wood effect finish, acoustic infills, cut-outs, grid alternatives, secure function, swing-down function
Material	post-coated galvanised steel
Cavity mm	200
Weight kg m	5.0 - 6.9
Alpha p 125 hz	0.4
Alpha p 250 hz	0.2
Alpha p 500 hz	0.1
Alpha p 1000 hz	0.1
Alpha p 2000 hz	0.1
Alpha p 4000 hz	0.15
Perforation code	Unperforated
Available colours	RAL 9016, RAL 9010, RAL 9006, RAL 9007, RAL 9005
Indoor air quality	A+, E1, IAC Gold
Humidity resistance	90% RH
Recycled content pct	17.3
Light reflectance pct	85
Recycled content year	2023
Reaction to fire class	A1
Sound absorption class	NC
Light reflectance colour	RAL 9010
Reaction to fire standard	EN 13501-1
