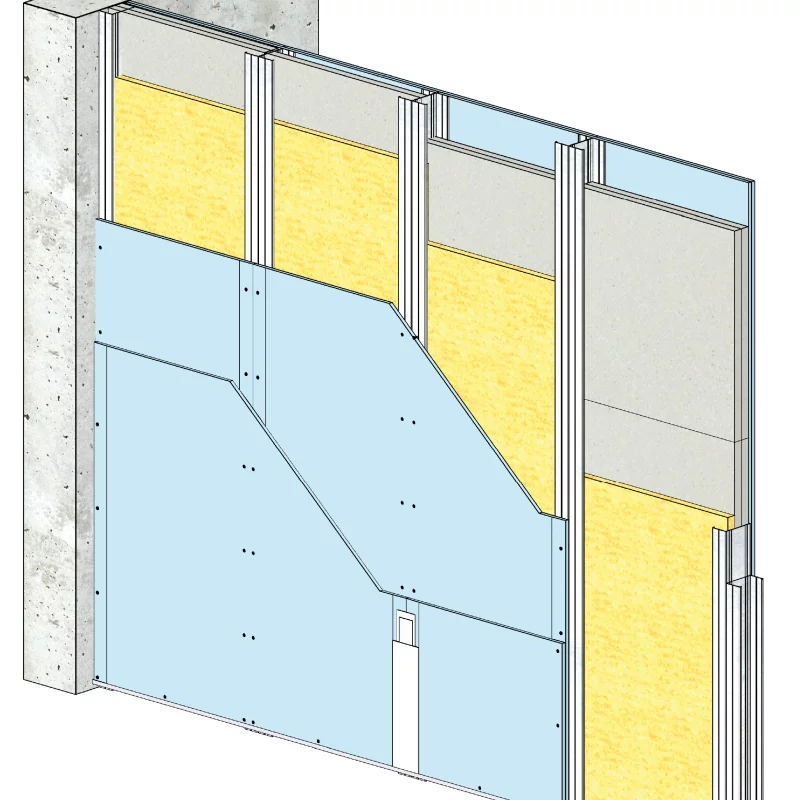

Illustrative image. It may show a different size or finish from the same product range, and is provided for identification only.

Knauf

This product is available from the catalog. Contact a seller to request a quote.

0 Reviews

Knauf Torro FB4

Product	Nominal	Stud type	Wall type	Frame type	Product standard	Total thickness mm
Knauf Torro FB4	—	—	cloison pare-balles	montants M70/35 ou 100/35	—	—
Knauf Torro FB4	120/70-35	—	120/70-35	M 70/35	EN 1522	120
Knauf Torro FB4	120 mm	M 70/35	—	M 70/35	DTU 25.41	120
Knauf Torro FB4	150/100-35	—	150/100-35	M 100/35	EN 1522	150
Knauf Torro FB4	150 mm	M 100/35	—	M 100/35	DTU 25.41	150
Knauf Torro FB4	FB4	M70/35, M100/35	—	M70/35, M100/35	—	56

Note	Répond aux critères FB1 à FB4 NS (NS = absence d'éclats)
Rail z	275
Calibers	357 Magnum, 44 Remington Magnum
Material	gypsum
Standard	DTU 25.41
Rail type	R 100
Ammo types	FJ1/CB/SC, FJ2/FN/SC
Screw type	XTN
Ammo mass g	10.2 ± 0.1, 15.3 ± 0.1
Weapon type	Arme de poing
Facing plate	Diamant 13 Cleaneo C
Ossature type	M 100/35
Fire resistance	EI 90
Torro wall code	150/100-35
Screw lengths mm	23
Firing distance m	5 ± 0.5
Stud thickness mm	6/10
Firing velocity m s	430 ± 10, 440 ± 10
Facing plate width mm	1200
Fire test certificate	PV Efectis EFR-14-002977
Bullet resistance code	FB4
Bullet resistance note	Répond aux critères FB1 à FB4 NS
Facing plate length mm	2500
Fire resistance rating	EI 90
Internal filling plate	Knauf Torro
Bullet resistance class	FB4 NS
Bullet test certificate	RE Beschussamt Ulm S 12 0040 02
Acoustic insulation note	laine minérale possible
Facing plate thickness mm	12.5
Plate count and thickness	4 x 13
Max height double stud 060 m	6.75
Max height single stud 060 m	5.6
Max height double stud 060 mm	6750
Max height single stud 060 mm	5600
Internal filling plate width mm	595
Internal filling plate length mm	624
Internal filling plate thickness mm	28

No reviews yet.

Variants (6)
